TOA 9000M2 Series

Digital modular mixer / amplifier with up to 8 inputs / outputs. When you re-power the amplifier all the settings will default to what it has been programmed for.

• Available in single / dual amplifiers (60W / 120W / 240W)
• Dual channel digital signal processor (DSP)
• (10 band EQ, Compressor, delay, speaker EQ presets)
• Gate and automix (NOM) for ceiling mics
• Inputs can be routed to respective outputs
• Includes rack mounting kit (2 RU)
• Optional remote scene / volume controls

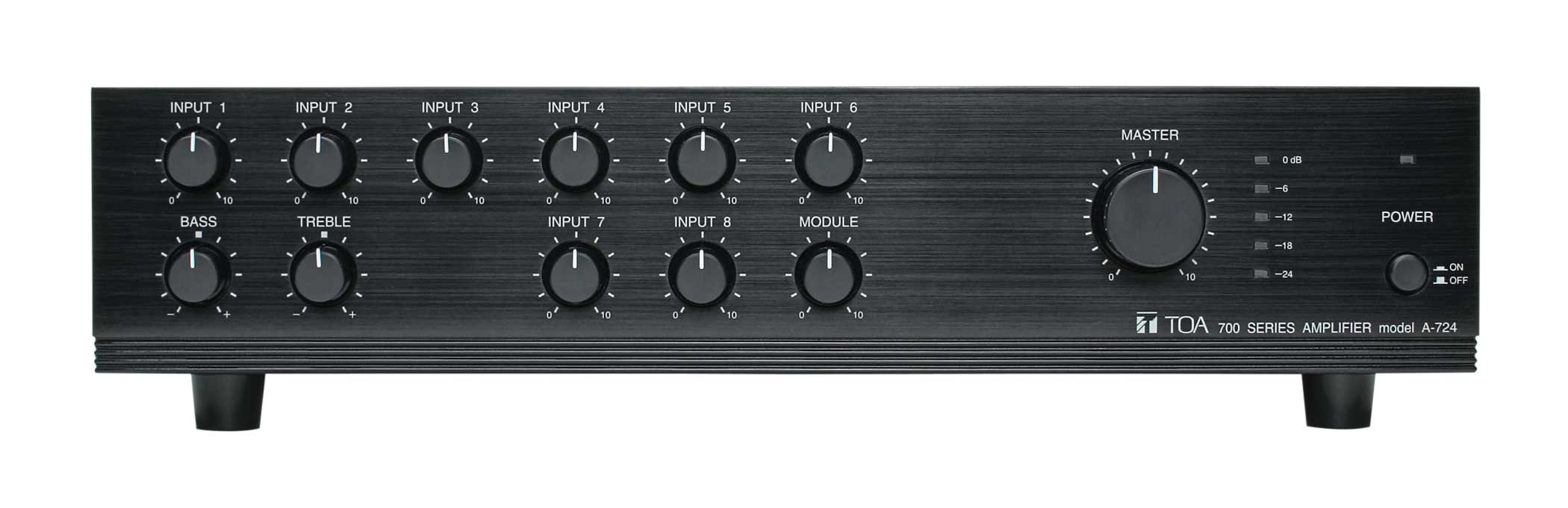

TOA 700 Series

Mixer / Amplifier with up to 9 inputs Available in 60W / 120W / 240W Six mic / line inputs with phantom power (terminal block connectors) Two auxiliary inputs (dual RCA jacks) Single module slot for EQ processing / additional input Turn-On Delay disconnects output during power-up Remote volume control Optional rack mount kit (2 RU)

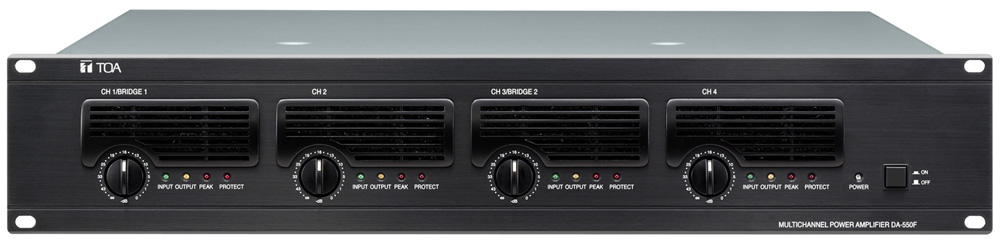

TOA DA Series

Multi-Channel Digital Power Amplifiers Available in 2 / 4 channel amplifiers (170W / 250W / 500W / 1000W) High efficiency (30% less power consumption than typical amplifiers) Compact single / dual rack space design Stack up to 5 units without open spaces between amplifiers Independent power supply for each channel Low heat dissipation / removable dust filters

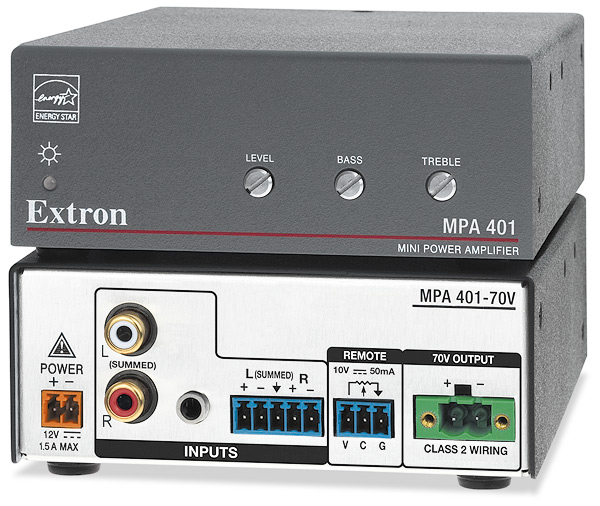

Extron MPA 401 Mono Amplifier

Mono 70 / 100 V Power Amplifier - 40 Watts 70 Volt mono amplifer with 40 watts output Balanced and unbalanced buffered audio inputs (RCA / 3.5mm / terminal block) Front panel bass, treble, and input level inputs Rack mountable with optional RSU 126 rack shelf (1 RU) Fanless design (no cooling required) Auto power-down and fast power-up Remote volume / mute control

Extron MPA 152 Stereo Amplifier

Stereo 70 / 100 V Power Amplifier - 40 Watts 2 x 15 watts 4 ohm / 2 x 8 watts 8 ohm stereo amplifer with 30 watts output Balanced and unbalanced buffered audio inputs (RCA / 3.5mm / terminal block) Front panel bass, treble, and input level inputs Front panel stereo / dual mono toggle switch Rack mountable with optional RSU 126 rack shelf (1 RU) Fanless design (no cooling required) Remote volume / mute control
